SGAWT Universal Load Cell / Strain Gage Amplifier

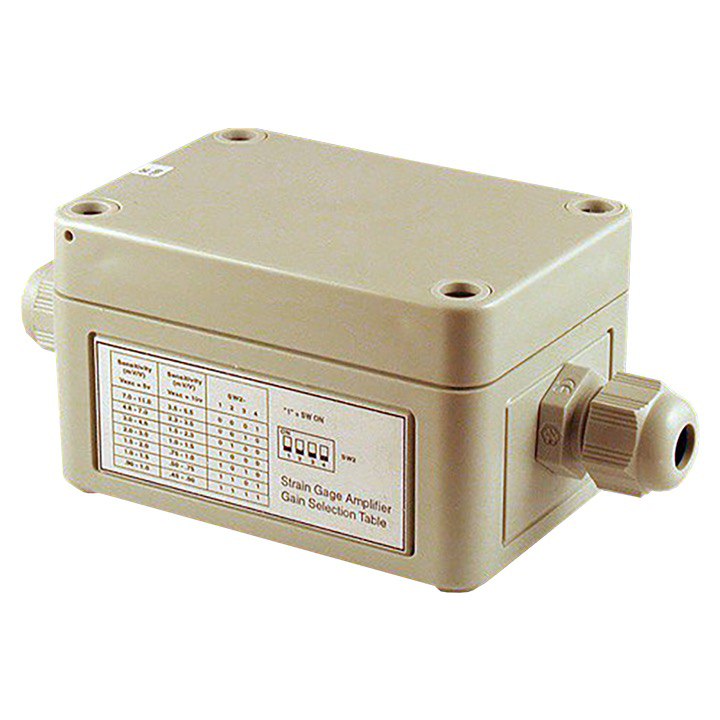

Universal Strain Gage Amplifier with IP66 (NEMA 4X) enclosure

Specifications

Excitation
Performance
Environmental
Power
Excitation

• Voltage – 5 or 10V DC
• Current – 30 mA

Performance

• Output 1 – ±5V or ±10 V full scale
• Output 2 – 4-20mA full scale unipolar
• Input Range – 5 to 50 mV full scale
• Dynamic Response – DC to 100Hz
• Zero Offset Range – ± 50% full scale output
• Coarse and fine adjust Nonlinearity – 0.01% full scale

Environmental

• Operating temperature – minus 32°F to 158°F
• Dimensions – 2.56 in x 3.70 in. x 2.24 in.

Power

• DC – 10-28 VDC
