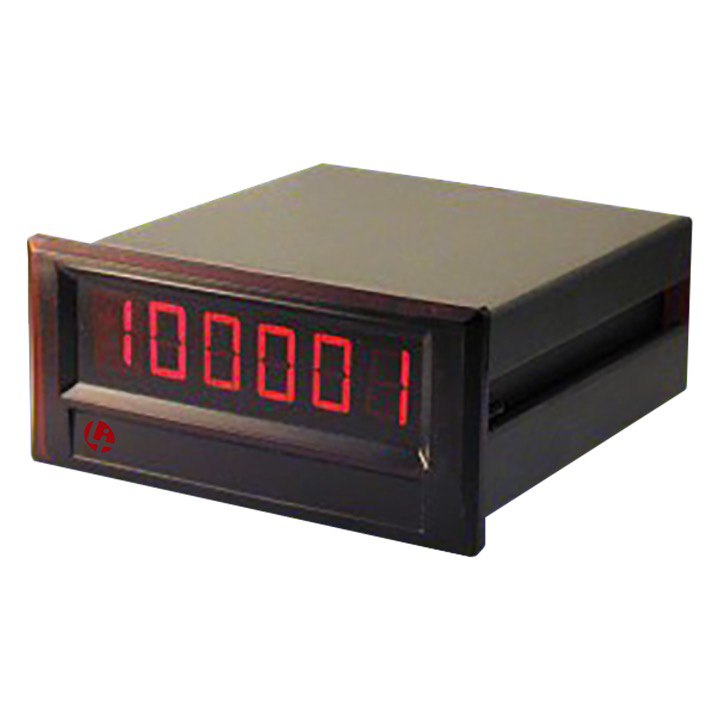

Input Specifications
Readout Specifications
Output
Environmental/Power Specifications
Input Specifications
| Full Scale Input Voltage : | +/- 1.99999 VDC |
| Input Resistance: | >1000 MW |
| Input Bias Current: | 20 nA (typ) |
| Input Type: | Fully Differential |
| Input Bias Current: | 20 nA (typ) |
| Max Normal Mode Voltage: | +/- 150 V |
| Max Common Mode Voltage: | +/- 5 V |
Readout Specifications
| Full Scale Readout: | +/- 199,999 |
| Accuracy (Full Scale): | Adjustable |
| Accuracy Stability: | +/- 0.005% R +/- 1 digit (For 3 months @ 25 +/- 5 deg C ) |
| Zero (Stability): | within +/- 2 digits (For 3 months @ 25 +/- 5 deg C ) |
| Non-Linearity: | +/- 0.0001% R +/- |
| Full Scale Tempco: | +/- 10ppm / degree C |
| Zero Tempco: | +/- 1 ppm / deg C |
| Display type (digits): | 0.56” Hi Eff Red LED |
| Display Type (sign): | Minus sign displayed for negative inputs. No sign displayed for positive |
| Decimal Points: | Selectable via rear panel connector |
| Conversion Rate: | 2.5 conv/sec |
Output
| All BCD output signals are buffered, latched, fully TTL compatible signals capable of sinking and sourcing 2 full TTL loads. The SIGN (POL) output is logical “1” for positive readings and logical “0” for negative. |
Environmental/Power Specifications
| Operating Temp: | 0 to +55 deg C° |
| Storage Temp: | -40 to +85 deg C° |
| Input Voltage (Power): | +/- 15 or +/- 12 VDC @ 35 mA and +5 VDC @ 250 mA. |
