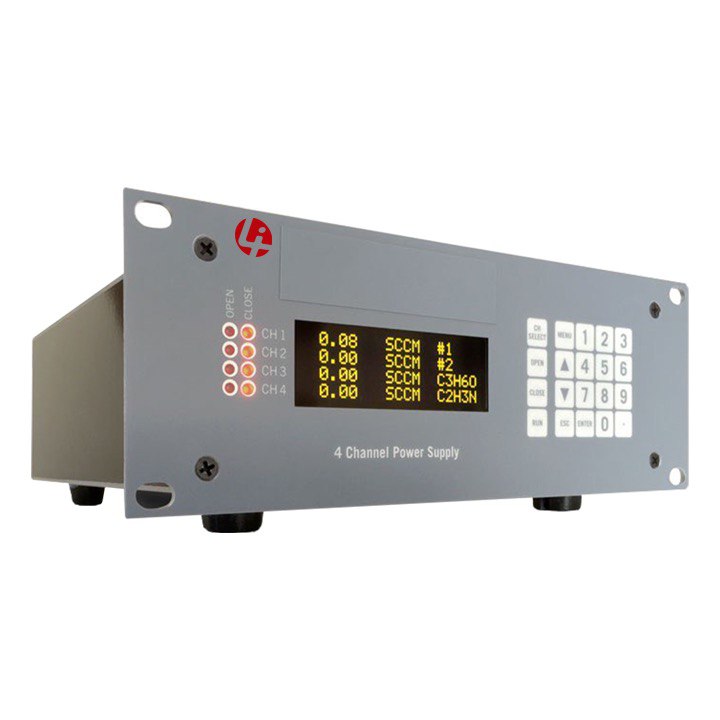

Digital display module with red LEDs

Controller, Mass Flow

4 Channel Readout Mass Flow Controller Power Supply

$2,699.00

Features & Benefits

Microprocessor-based smart readout, power supply and controller
Designed specifically for Mass Flowmeters and Mass Flow Controllers
(2) alarm set points (1) high and (1) low for each channel activate
opto-isolated, open collector transistor outputs for driving relays
100/115/230 V~ rear panel switch selectable power inputs
Rack or bench mountable using the retractable stand

Availability: 2 in stock

SKU: MFC400 Categories: Controller, Mass Flow

Description
Reviews (0)

Specifications

Power input requirements:

100, 110 or 240 VAC , 50/60 Hz

Power output:

+/- 15 VDC, 250-500 mA

Signal input from device:

User selectable: 0 to 5 & 0 to 10 VDC, 4 to 20 mA

Input impedance:

Voltage >10 Megohm, current 120 ohms

Programmable functions (four independent channels):

Valve override: Run, Close, Purge
Display flow or totalizer
Engineering units
Gas name/symbol
A/D filter rate
Input signal type
Alarm high and low values
Master-slave ratio control
Calibrate full scale
Calibrate zero
Gas correction factor
